CARPURIDE Ring Bracket

Note: The motorcycle handlebar range that can be used by the ring bracket is 12-28MM.

Ring Bracket Installation Mode 1

2. Attach the mount to handlebar with a Phillips screwdriver

3. Clamp the connecting rod to the mount

4. Insert Carpuride device and adjust its position as desired. Tighten adjustment ring to secure

5. Installation is complete（Be suitable for crooked or flat handlebars）

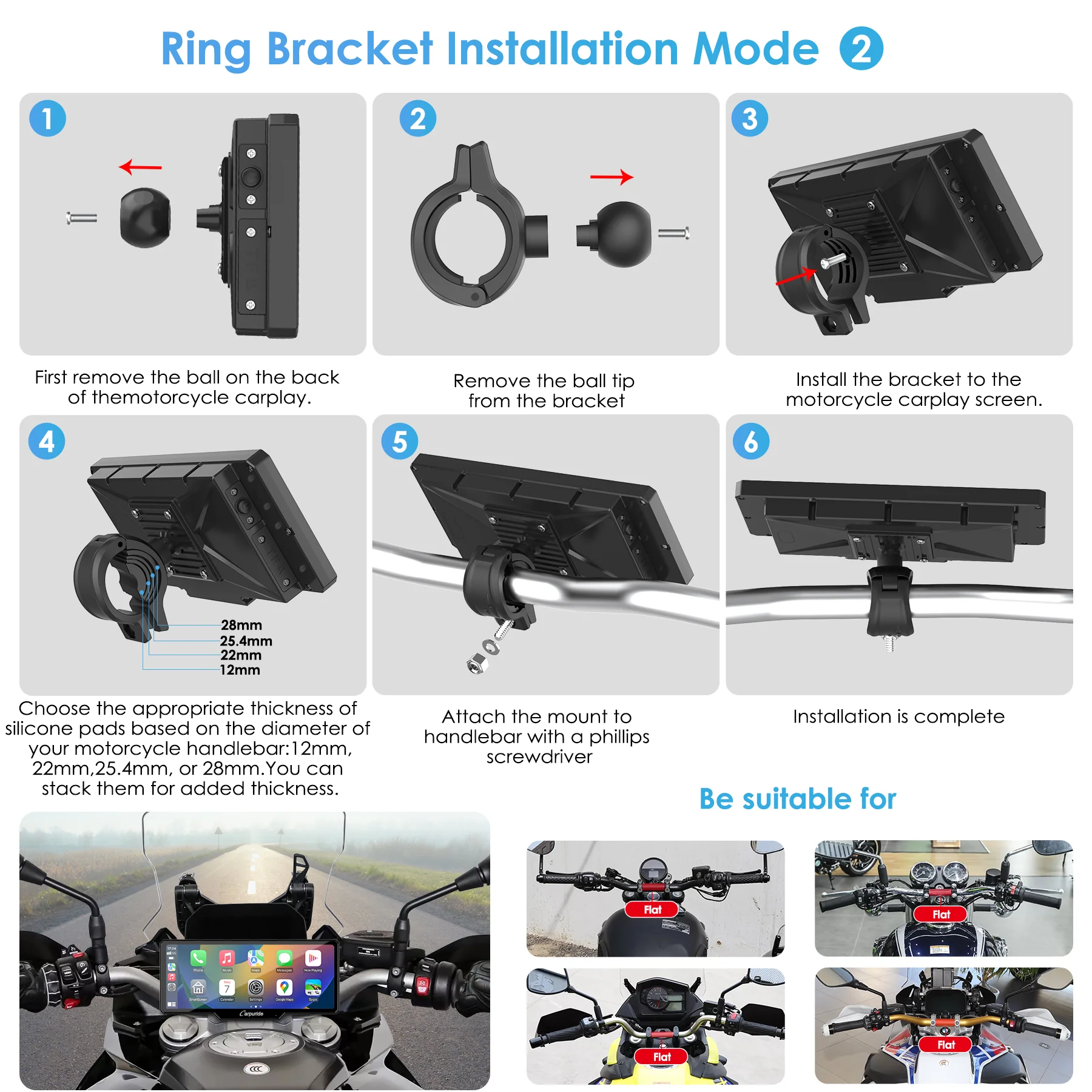

Ring Bracket Installation Mode 2

1. First, remove the ball from the back of the Carpuride motorcycle carplay.

2. Remove the ball tip from the bracket

3. Screw the bracket to the motorcycle carplay screen.

4. Choose the appropriate thickness of silicone pads based on the diameter of your motorcycle handlebar:12mm, 22mm,25.4mm or 28mm. You can stack them for added thickness.

5. Attach the mount to the handlebar with a Phillips screwdriver

6. Installation is complete（Be suitable for crooked or flat handlebars）
